Objective:

On the ROAS topology, run a windows server

machine on VLAN 30 and manage the other

workstations on all VLANS with active directory.

Configure Organizational Unites, Group Policy

Objects, and manage users.

This project was performed on the EVE-NG

virtual platform, please refer to "Virtualized

High Redundancy Network" project for

EVE-NG setup documentation. The

configurations for this lab are below. Images

for some outcomes above.

Active-Directory

Active Directory

Objective:

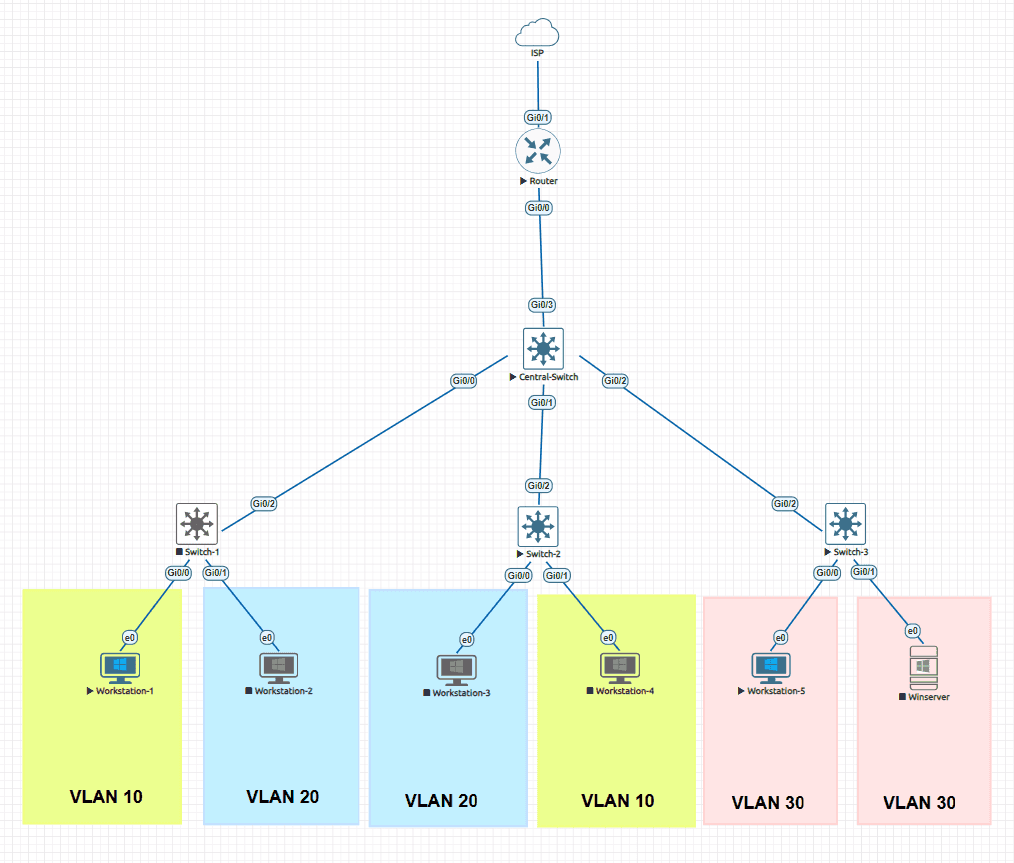

On the ROAS network topology, run a windows

server machine on VLAN 30 and manage the

other workstations on all VLANS with active

directory. Configure Organizational Units, Group

Policy Objects, and manage users.

This project was performed on the EVE-NG

virtual platform, please refer to "Virtualized

High Redundancy Network" project for

EVE-NG setup documentation. The

configurations for this lab are below. Images

of some outcomes to the left.

  • #Winserver Configuration
#System Hardening, User Credentials, and updates already assumed
New-NetIPAddress -InterfaceAlias "Ethernet" -IPAddress 10.0.30.10 -PrefixLength 24 -DefaultGateway 10.0.30.1
Set-DnsClientServerAddress -InterfaceAlias "Ethernet" -ServerAddresses 10.0.30.10
Install-WindowsFeature AD-Domain-Services, DNS -IncludeManagementTools
Import-Module ADDSDeployment
Install-ADDSForest `
   -DomainName "lab.local" `
   -SafeModeAdministratorPassword (ConvertTo-SecureString "********" -AsPlainText -Force) `
   -InstallDNS `
   -Force
Import-Module ActiveDirectory

# Create OUs
New-ADOrganizationalUnit -Name "LabUsers" -Path "DC=lab,DC=local"
New-ADOrganizationalUnit -Name "LabComputers" -Path "DC=lab,DC=local"

# Create Users
New-ADUser -Name "TestUser1" -GivenName "Test" -Surname "User1" -SamAccountName "TestUser1" -AccountPassword (ConvertTo-SecureString "P@ssw0rd!" -AsPlainText -Force) -Enabled $true

# Create Security Group
New-ADGroup -Name "LabAdmins" -GroupScope Global -GroupCategory Security -Path "OU=LabUsers,DC=lab,DC=local"
# Create GPO
New-GPO -Name "PasswordPolicy" -Comment "Enforce strong passwords"
# Link GPO to OU
New-GPLink -Name "PasswordPolicy" -Target "OU=LabUsers,DC=lab,DC=local"

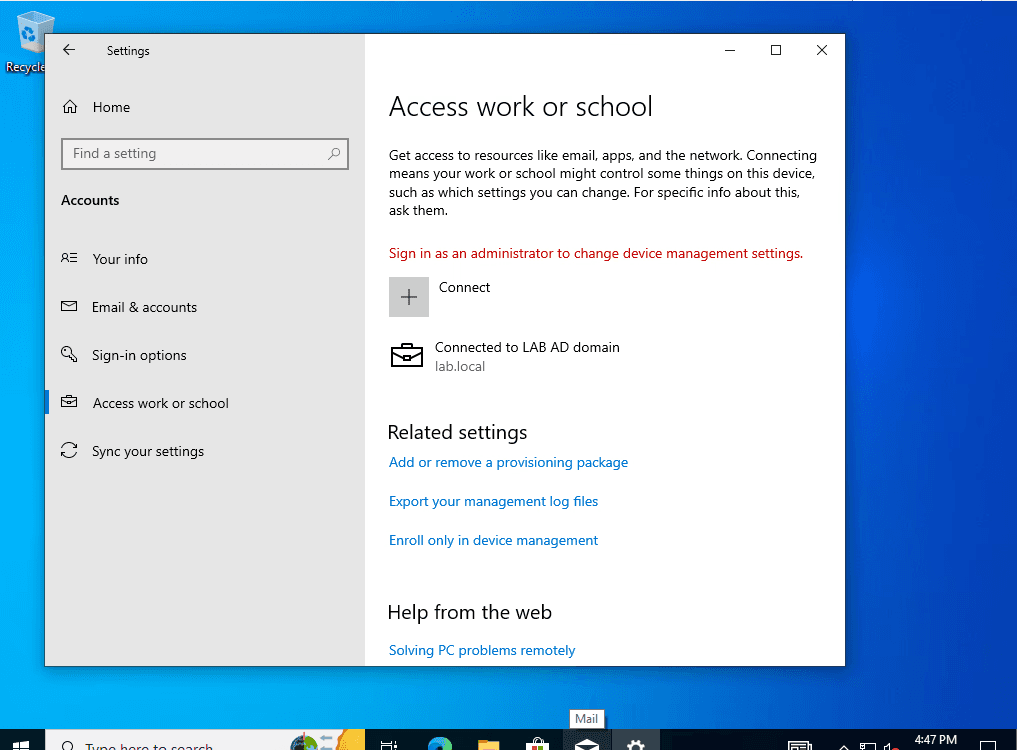

#On workstations PCs' to be managed by AD
#System Hardening, User Credentials, and Updates Already Assumed

Set-DnsClientServerAddress -InterfaceAlias "Ethernet" -ServerAddresses 10.0.30.10
Add-Computer -DomainName "lab.local" -Credential lab\Administrator -Restart
